Inside the doomed Southwest flight: Alarms, smoke and vibrations
Southwest Airlines flight 1380 took off normally from LaGuardia Airport on the morning of April 17, 2018 – until there was a sudden change in cabin pressure, the aircraft tilted sharply and a “gray puff of smoke” was seen. Interviews conducted by the National Transportation Safety Board (NTSB) with the crew of the troubled aircraft show how quickly a routine flight can turn calamitous. One person died from injuries suffered in the incident – after being partially sucked through a window cracked open by an errant engine part. Eight passengers sustained minor injuries.

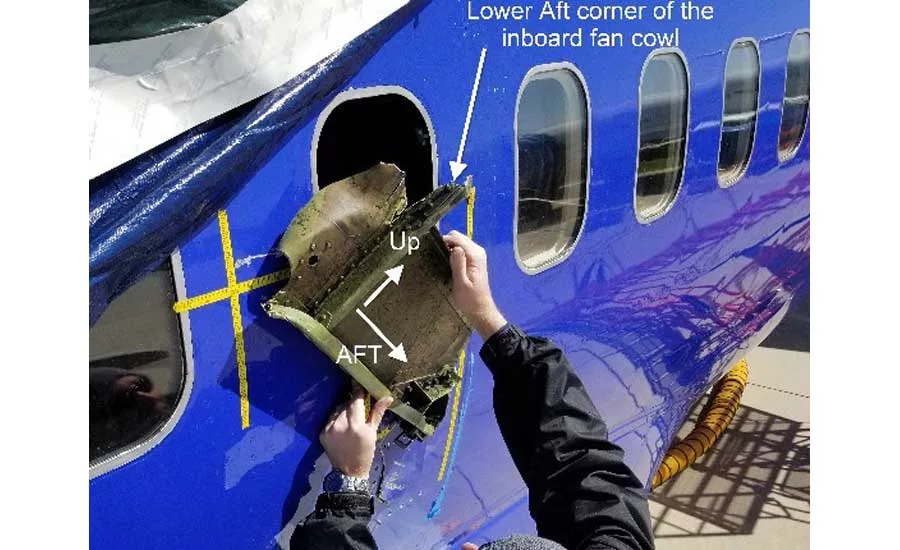

(Pictured above: window 14 with portion of engine inboard fan cowl. [NTSB photo])
The woman in row 14
The NTSB’s first major update on its ongoing investigation into the tragedy provides a glimpse of the chaos that followed engine failure and the loss of engine inlet and cowling – fragments of which struck the wing and fuselage, destroying a passenger window and causing rapid depressurization. With oxygen masks dropping from the ceiling the three flight attendants on board retrieved portable oxygen bottles and began moving through the cabin to calm passengers and assist them with their masks. As they moved toward the mid-cabin, they found the passenger in row 14 partially out of the window and attempted to pull her into the cabin. Two male passengers helped and were able to bring the passenger in. Despite their efforts, she died from her injuries.
Meanwhile, flight data recorder shows that all left engine parameters dropped simultaneously, and the plane rolled to the left about 40 degrees and shook with vibrations, causing the cabin altitude alert to activate. The flight crew was able counter the roll with control inputs, but handling the airplane remained difficult throughout the remainder of the abbreviated flight.
Captain opts for a quicker landing
Distractions, loud noises in the cockpit and the masks the captain and co-pilot had to don make communications with the ground difficult, but the captain was able to request a diversion from the air traffic controller and was promptly given vectors by the controller. The captain initially was planning on a long final approach to make sure they completed all the checklists, but when they learned of the passenger injuries, she decided to shorten the approach and expedite landing.
There were 144 passengers and five crewmembers onboard the flight, which was headed to Dallas Love Field in Dallas, Texas before it was aborted.
The NTSB has not yet determined a cause of the incident. Special attention is being given to the maintenance and inspection records for the fan blade which broke off at the root, but the entire aircraft – which was extensively damaged – is being thoroughly examined.
Investigation parameters are broad
The NTSB’s investigative team for the incident consists of an investigator-in-charge from the major investigations division and specialists in powerplants, structures, survival factors and operations. Specialists in meteorology, maintenance records, air traffic control, flight recorders, and materials supported the investigation from other locations. Chairman Robert Sumwalt also accompanied the team to the scene.
Parties to the investigation include the Federal Aviation Administration, Southwest Airlines, GE Aviation, Boeing, the Aircraft Mechanics Fraternal Association, the Southwest Airlines Pilots Association, Transport Workers Union Local 556, and UTC Aerospace Systems.
Initial examination of the airplane revealed that the majority of the inlet cowl was missing, including the entire outer barrel, the aft bulkhead, and the inner barrel forward of the containment ring. The inlet cowl containment ring was intact but exhibited numerous impact witness marks. Examination of the fan case revealed no through-hole fragment exit penetrations; however, it did exhibit a breach hole that corresponded to one of the fan blade impact marks and fan case tearing.
The No.13 fan blade had separated at the root; the dovetail remained installed in the fan disk. Examination of the No. 13 fan blade dovetail exhibited features consistent with metal fatigue initiating at the convex side near the leading edge. Two pieces of fan blade No. 13 were recovered within the engine between the fan blades and the outlet guide vanes. One piece was part of the blade airfoil root that mated with the dovetail that remained in the fan disk; it was about 12 inches spanwise and full width and weighed about 6.825 pounds. The other piece, identified as another part of the airfoil, measured about 2 inches spanwise, appeared to be full width, was twisted, and weighed about 0.650 pound. All the remaining fan blades exhibited a combination of trailing edge airfoil hard body impact damage, trailing edge tears, and missing material. Some also exhibited airfoil leading edge tip curl or distortion. After the general in-situ engine inspection was completed, the remaining fan blades were removed from the fan disk and an ultrasonic inspection was performed consistent with CFM International Service Bulletin 72-1033. No cracks were identified on the remaining blades.
The No. 13 fan blade was examined further at the NTSB Materials Laboratory. Fatigue fracture features emanated from multiple origins at the convex side and were centered about 0.568 inch aft of the leading edge face of the dovetail and were located 0.610 inch outboard of the root end face. The origin area was located outboard of the dovetail contact face coating, and the visual condition of the coating appeared uniform with no evidence of spalls or disbonding. The fatigue region extended up to 0.483 inch deep through the thickness of the dovetail and was 2.232 inches long at the convex surface. Six crack arrest lines (not including the fatigue boundary) were observed within the fatigue region. The fracture surface was further examined using a scanning electron microscope, and striations consistent with low-cycle fatigue crack growth were observed.
The accident engine fan blades had accumulated more than 32,000 engine cycles since new. Maintenance records indicated the accident engine fan blades had been periodically lubricated as required per the Boeing 737-600/700/800/900 Aircraft Maintenance Manual.
According to maintenance records, the fan blades from the accident engine were last overhauled 10,712 engine cycles before the accident. At the time of the last blade overhaul (November 2012), blades were inspected using visual and fluorescent penetrant inspections. After an August 27, 2016, accident in Pensacola, Florida, in which a fan blade fractured, eddy current inspections were incorporated into the overhaul process requirements.
In the time since the fan blade overhaul, the accident engine fan blade dovetails had been lubricated 6 times. At the time each of these fan blade lubrications occurred, the fan blade dovetail was visually inspected as required for the fan blades installed in the accident engine.
The NTSB materials group is working to estimate the number of cycles associated with fatigue crack initiation and propagation in the No. 13 fan blade and to evaluate the effectiveness of inspection methods used to detect these cracks.
On April 20, 2018, CFM International issued Service Bulletin 72-1033 applicable to CFM International CFM 56-7B-series engines recommending ultrasonic inspections of all fan blades on engines that have accumulated 20,000 engine cycles and subsequently at intervals not to exceed 3,000 engine cycles.
On April 20, 2018, the FAA issued emergency AD (EAD) 2018-09-15 based on the CFM International service bulletin. The EAD required CFM56-7B engine fleet fan blade inspections for engines with 30,000 or greater cycles. The EAD required that within 20 days of issuance that all CFM56-7B engine fan blade configurations to be ultrasonically inspected for cracks per the instructions provided in CFM International SB 72-1033, and, if any crack indications were found, the affected fan blade must be removed from service before further flight. On the same day, EASA also issued EAD 2018-0093E (superseding EASA AD 2018-0071) that required the same ultrasonic fan blade inspections to be performed.
The remainder of the accident airplane’s airframe exhibited significant impact damage to the leading edge of the left wing, left side of the fuselage, and left horizontal stabilizer. A large gouge impact mark, consistent in shape to a recovered portion of fan cowl and latching mechanism, was adjacent to the row 14 window (see figure 4; the window was entirely missing. No window, airplane structure, or engine material was found inside the cabin.
A cockpit voice recorder (CVR) group was convened and has completed a draft transcript of the entire event. The CVR transcript will be released when the public pocket is opened.
Additional information will be released as warranted.
