MGS Technology, the global leader in ultra-low gas sensing solutions, announces the launch of full-scale production of sensors MIPEX-05 and its availability for ordering!

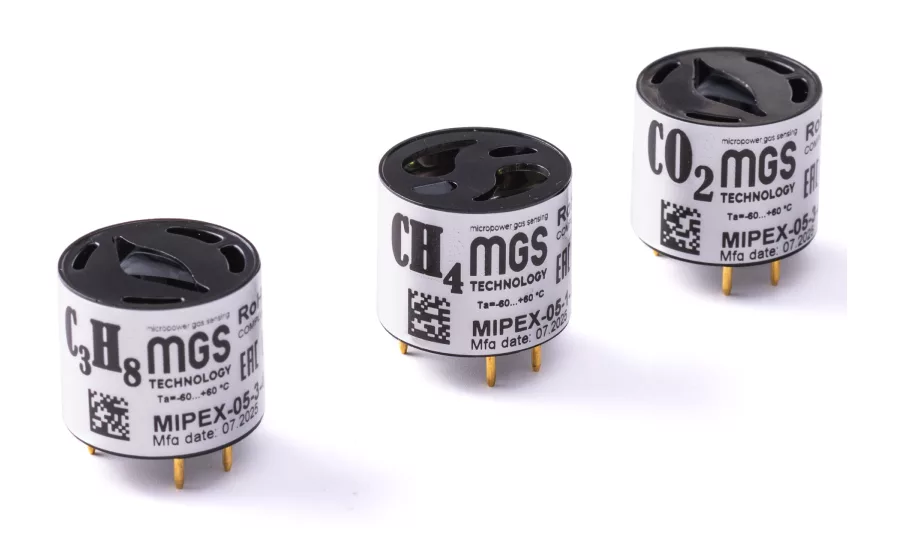

MIPEX-05 is an ultra-low power NDIR gas sensor designed for automatic continuous measurement of hydrocarbons and carbon dioxide concentrations in hazardous areas.

Image credit: MGS Technology

Key applications:

• Portable Detectors including battery-powered personal clip ones, offering years of recharge-free protection for workers.
• Maintenance-free Fixed Detectors reducing the risks associated with frequent inspections in hard-to-reach or hazardous areas.

Key advantages:

• Power consumption below 0.2 mW,
• Supply voltage: 2.7 to 5 V, compatible with diverse power sources,
• Extended measurement range:
• CH₄ up to 100% vol.;
• C₃H₈ up to 20% vol.;
• CO₂ up to 10% vol.
• Long-term measurement stability – over 10 years.

MIPEX-05 features:

• Ultra-low power consumption – average current consumption 60 μA,
• Integrated microcontroller provides linearized and temperature-compensated output data,
• Dual-wavelength LED technology ensures high measurement reliability and ultra-low power consumption,
• Intrinsically safe explosion protection level «ia»,
• Standard 4th series size - ⌀20.1×16.6 mm,
• For C₃H₈ available a high-sensitivity model with 10 ppm resolution and 20 ppm low detection limit.

MGS Technology

sales@mgs-technology.com

LEARN MORE
